WARRIOR 330 THREE-PHASE MIG WELDER

£1,320.00 Exc VAT*

IN STOCK

The Warrior 330 Three-Phase MIG Welder is a powerful 300 Amp inverter MIG welder with a 415V three-phase input, ideal for general fabrication and digger bucket repair. If you’re looking for a 300A MIG welder but with extra oomph, the Warrior 330 MIG Welder is the machine for you.

The Warrior 330 Three-Phase MIG Welder weighs only 32kg, including a 15kg wire spool with cover. This welding machine’s highly portable and efficient design allows it to run off a generator, including our Bison Whisper Three-Phase 10kVA Diesel Generator, a Mosa 300 and a Genset 300.

Soft start prevents wire tangling and uses less than 30% electricity than a conventional transformer-based machine, whilst its powerful four roller wire-feed is superb for aluminium welding. Our optional Warrior Aluminium MIG Welding Kit enables you to modify your Warrior 330 MIG Welder to start welding aluminium immediately.

Our 300A MIG welder provides stepless adjustable welding voltage and wire speed with excellent welding characteristics, including variable burnback and spatter control, and has the capacity to be run as a water-cooled machine; increasing the machine’s efficiency, operating time and amperage.

Unlike other companies, we can provide bespoke built-in Goblin Fume Extraction for the Warrior 330 Three-Phase MIG Welder; an independent twin fan ventilation design with comprehensive protection (anti-dust, anti-moisture, anti-corrosion).

NEW! BUILD YOUR OWN MACHINE
ENQUIRE ABOUT MACHINE
BUILD YOUR CUSTOM MACHINE
Technical Information

Specifications

Input voltage415V three-phase
Duty cycle330A @ 100%
Wire range0.6-1.2mm
Spool sizeUp to 15kg
Weight 17kg
Frame dimensions (L x W x H)790 x 340 x 670mm
Digital amp/voltmeterFully calibrated
Four roller drive
Soft start
Stepless power control
Variable spatter control (inductance)
Automatic burnback control
Generator friendly

Supplied With

PRO15 3m torch--
PRO25 4m torch--
PRO36 4m torchY
DF605W 4m water-cooled torch--
3m earth cable (with crocodile type clamp)--
5m earth cable (with crocodile type clamp)Y
5m earth cable (with screw clamp)--
3m rubber mains cable--
5m SY armoured mains cableY
10m SY armoured mains cable--
16A 3-pin mains plug--
16A 4-pin mains plugY
32A 3-pin mains plug--
32A 5-pin mains plug--
5m interconnecting cables--
0.6/0.8mm drive roller set--
1.0/1.2mm drive roller setY
Warrior argon regulatorY
3m argon hose--
5m argon hoseY
10m argon hose--
5-year warrantyY
Mounted on industrial easy-lift frame with locking castorsY
Mounted on bottle carrying trolley with water cooler--
Shipped fully assembled, mounted on its cradle and on a palletY
Upgrades & Additional Options

Upgrades

PRO36 5m torch£38.00

Additional Options

16-13A mains adapter--
16-32A mains adapter £38.00
10m 240V mains cable extension--
10m SY mains cable extension£98.95
10m Argon hose extension£49.95
0.6/0.8mm drive roller set--
0.8/1.0mm drive roller set£36.00
1.0/1.2mm drive roller set--
1.2/1.6mm drive roller set
Knurled drive roller set£56.00
3m arc welding cable --
5m arc welding cable--
Arc gauging torch--
WP9V 12.5ft TIG torch---
WP17V 12.5ft TIG torch--
Bison Mark II Generator--
Bison Whisper Generator£1995.00
Water cooled-option (Warrior water cooler, DF605 4m torch & Bottle Carrying Trolley)£1115.19
Built-in Goblin Fume Extraction£2153.95
Shipping & Services

Shipping

Customer collectionFrom our premises by Appointment Only
Mainland UK£60 (exclusions apply, enquire for further details)
Northern Ireland£135
Republic of Ireland£160

Services & Support

  • All of our machines are set up and tested to the customers’ requirements
  • Full product support is provided by our engineers
  • Our team carry out services and repairs on all makes and models of machines
  • With every future Warrior Welders service, your machine will receive a 1-year warranty; our ‘Lifetime Warranty’
Review / Q&As

Share your thoughts!

5 out of 5 stars

1 review

5 1
4 0
3 0
2 0
1 0

Let us know what you think...

Leave a Review Ask a Question Post a Video Post a Photo

What others are saying

  1. warriorwelders

    A dream to weld with

    warriorwelders –

    I own a small Marine Engineering Company. I purchased the awesome Warrior MIG from Phil. Not only is this probably the most powerful portable inverter MIG in its class but it is just a dream to weld with. The very clever arc sensing wire feed eliminates burnback and prolongs tip life. When pumping in the amps on heavy plate your hand will overheat a long time before the machine does! Phil is dedicated to first class after sales & service and is always just a call away for welding tips & hints should you wish to make the very best of your skills & machine. Phil was so confident in the quality of his machine he allowed me to trial the warrior machine for an indefinite period and to be honest it has exceeded even my expectations. In the unlikely event I had a problem with my machine, I have every confidence Phil would sort out it out with the greatest of efficiency.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  2. warriorwelders –

    Aluminium catamaran work boat, welded using a Warrior 330

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

×

Login

Continue as a Guest

Continue as a Guest

Share on Facebook
Share on Twitter
Pin on Pintrest
Email this product
Whatsapp this product

Related Products

Related products

WHAT OUR CUSTOMERS SAY

This plasma is brilliant!


We have been able to gouge holders out of shredders, saving time and money on gas and gouging rods, as well as cutting and chamfering plate onsite reducing both our consumable costs and our labour costs to our customers. The service we have received from Phil and the team at Warrior Welders has also been fantastic and we look forward to using their equipment moving forward.
Matt
MD, Plantweld Ltd.

Impressive bit of kit


Received delivery of the welder this morning, thank you. Have run it off our geny and, I must say, that is an impressive bit of kit for a 240V welder. And, after putting it through its paces, it certainly lives up to its name… proper little “WARRIOR”. It ran faultlessly on a 10-hour shift, running 1.2 hardfacing cored wire, until we ran out of wire then ran it on 1.6 wire, which is all we had left. A little tweak with the rollers and it just carried on and on. Would definitely recommend this little gem.
Customer
Warrior Welders

A great team and a truly perfect product

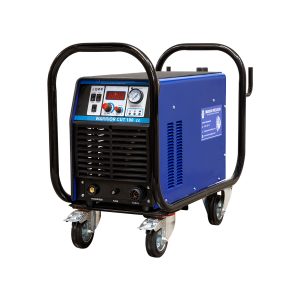

I bought a Cut 100 nearly a year ago. Phil and his excellent team looked at my old plasma and advised me mine was past repair. Once I tried his Cut 100 there was no going back. Recently I took it back for his team to look at because I could get it to work and it turned out to be my fault. They made me a coffee with biscuits and fixed my error without judgement. Made me feel more than welcome. I cannot recommend this company enough. They have a wonderful set up with a great team and a truly perfect product. Thanks.
