WARRIOR 170 SINGLE-PHASE MIG WELDER

£520.00 Exc VAT*

IN STOCK

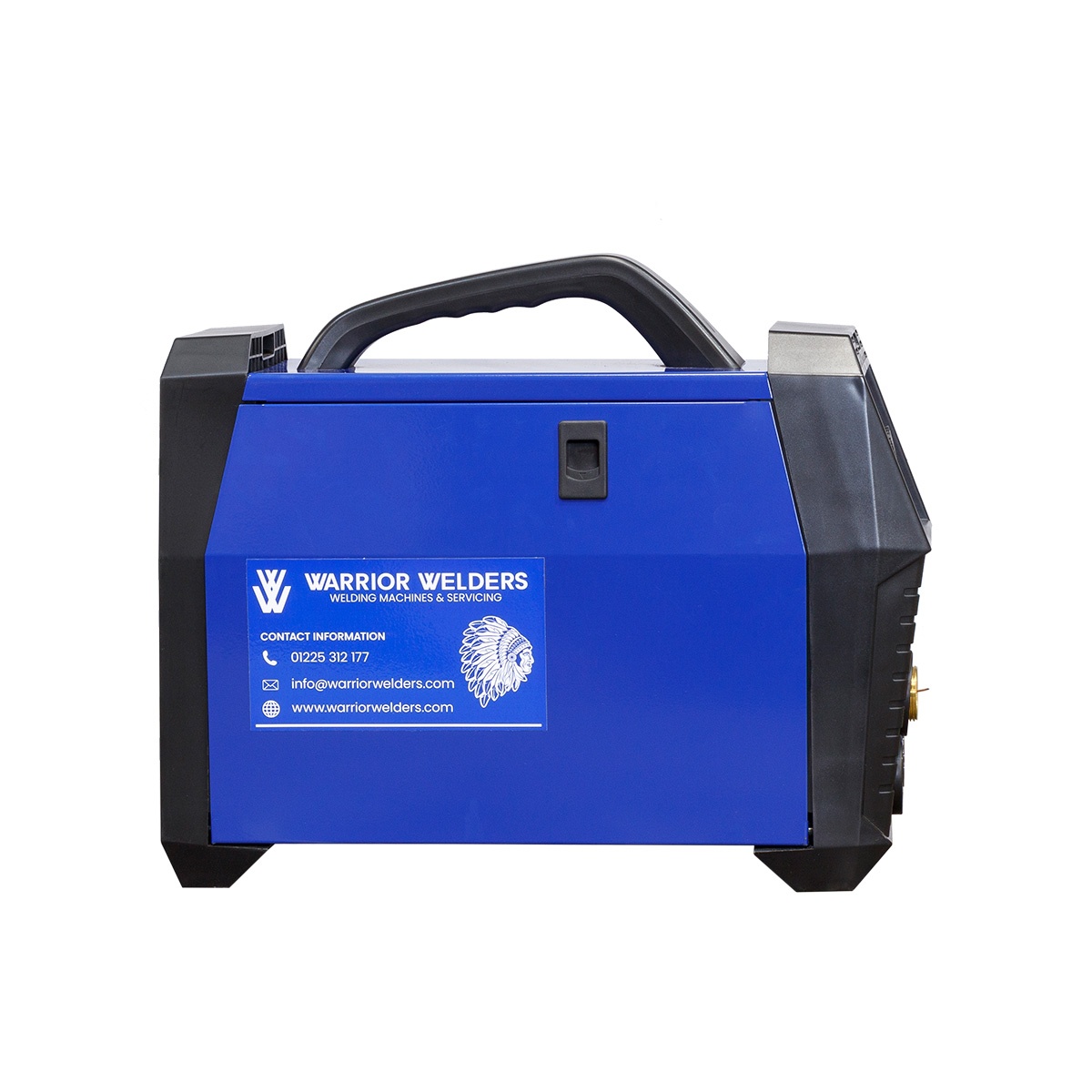

The Warrior 170 Single-Phase MIG Welder is a 170 Amp portable inverter MIG welder with a 240V single-phase input @ 100% duty cycle making it ideal for welding up to 6mm thickness. Reliable, easy to use and high-quality, this multi-functional welding machine provides gas and gasless MIG welding, MMA arc welding, stick welding and scratch start TIG welding.

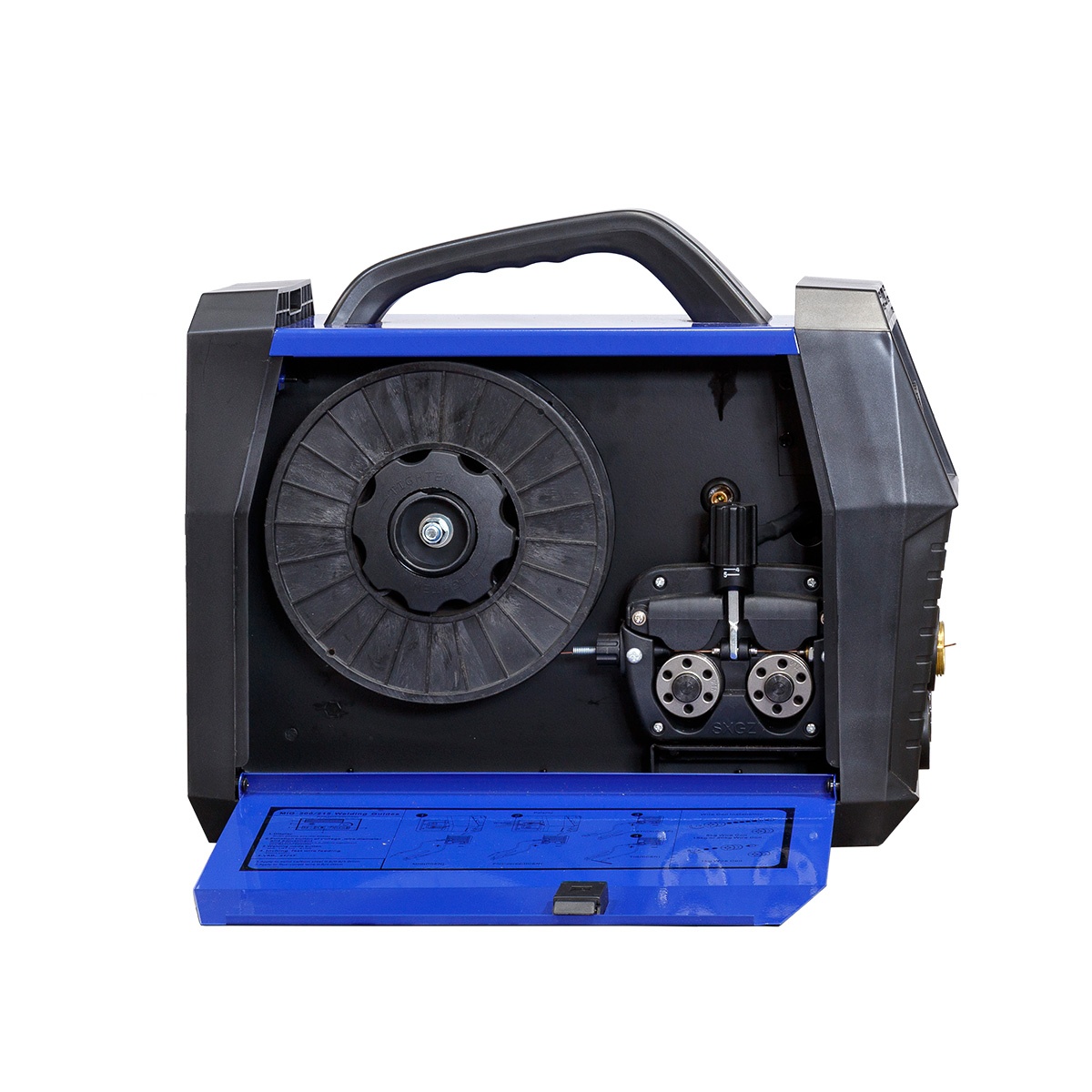

Unlike any other brand, the Warrior 170 Single-Phase MIG Welder has soft start and a powerful four roller wire-feed making it ideal for aluminium MIG welding. Our optional Warrior Aluminium MIG Welding Kit enables you to modify your Warrior 170 MIG Welder to start welding aluminium immediately.

This MIG welding machine provides stepless adjustable welding with excellent welding characteristics, including variable burnback and spatter control. During testing it reached maximum amperage of 225A.

The Warrior 170 Single-Phase MIG Welder’s highly efficient design allows it to run off a domestic 13A/240V supply or either our Bison Mark II 10kVA or Bison Whisper Single-Phase 10kVA Diesel Generator.

Technical Information

Specifications

Input voltage240V single-phase
Duty cycle350A @ 100%
Wire range0.8-1.6mm
Spool sizeUp to 5kg
Weight 28kg
Frame dimensions (L x W x H)620 x 410 x 680mm
Digital amp/voltmeterFully calibrated
Four roller drive
Soft start
Stepless power control
Variable spatter control (inductance)
Variable burnback control
MMA function
Generator friendly
Input voltage415V three-phase
Duty cycle330A @ 100%
Wire range0.6-1.2mm
Spool sizeUp to 15kg
Weight 17kg
Frame dimensions (L x W x H)790 x 340 x 670mm
Digital amp/voltmeterFully calibrated
Four roller drive
Soft start
Stepless power control
Variable spatter control (inductance)
Automatic burnback control
Generator friendly

Supplied With

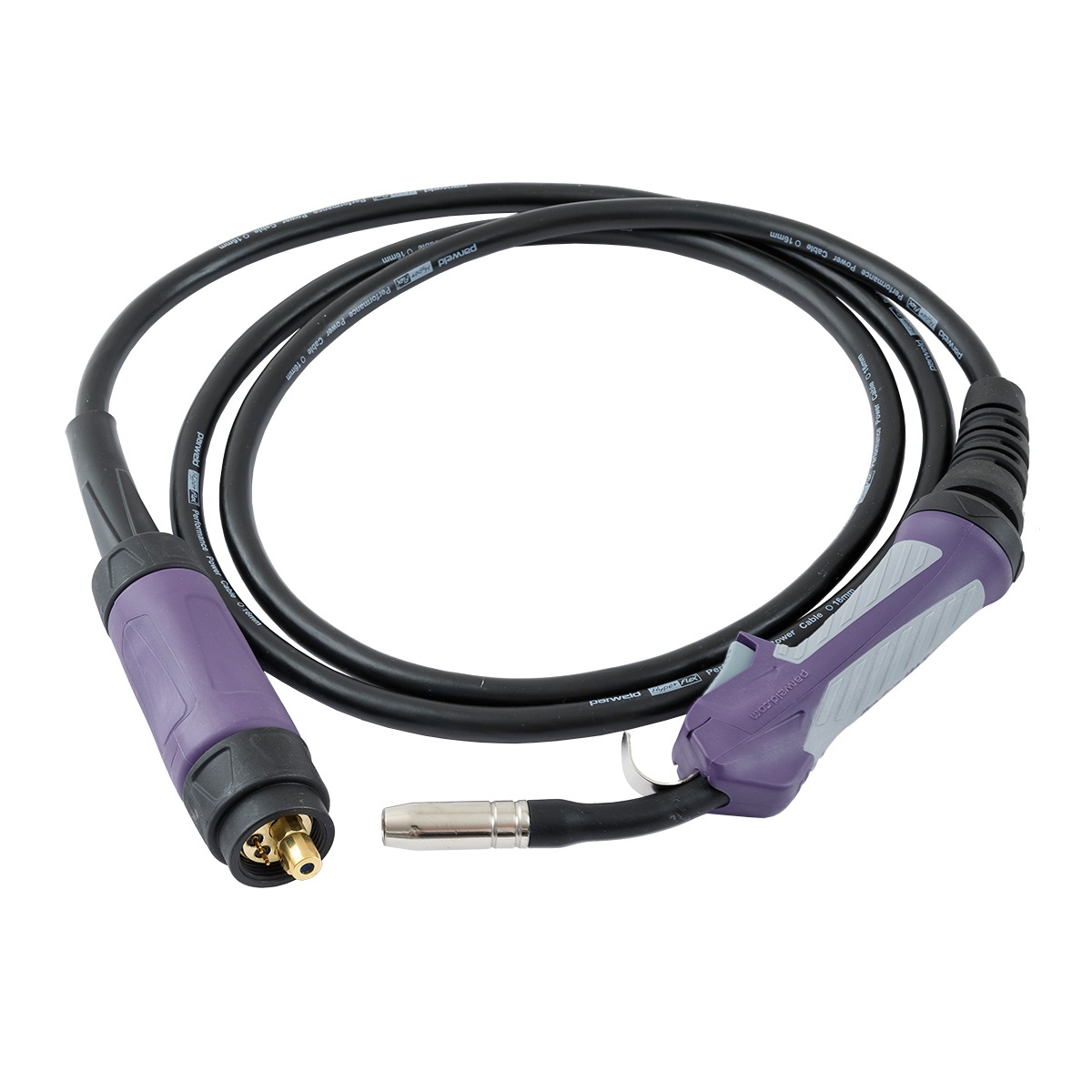

PRO15 3m torchY
PRO25 4m torch--
PRO36 4m torch--
DF605W 4m water-cooled torch--
3m earth cable (with crocodile type clamp)Y
5m earth cable (with crocodile type clamp)--
5m earth cable (with screw clamp)--
3m rubber mains cableY
5m SY armoured mains cable--
10m SY armoured mains cable--
5m interconnecting cables--
16A 3-pin mains plugY
16A 4-pin mains plug--
32A 3-pin mains plug--
32A 5-pin mains plug--
3m argon hoseY
5m argon hose--
10m argon hose--
Warrior argon regulatorY
0.6/0.8mm drive roller setY
1.0/1.2mm drive roller set--
5-year warranty (excl. consumable items)Y
Mounted on industrial easy-lift frame with locking castors--
Mounted on bottle carrying trolley with water cooler--
Upgrades & Additional Options

Upgrades

PRO15 4m torch£6.00
32A 3-pin mains plug£12.95

Special Offer

Coming Soon

Additional Options

16-13A mains adapter£38.00
16-32A mains adapter £38.00
13-32A mains adapter --
10m 240V mains cable extension£89.95
10m SY mains cable extension--
10m Argon hose extension£49.95
0.6/0.8mm drive roller set--
0.8/1.0mm drive roller set£36.00
1.0/1.2mm drive roller set--
1.2/1.6mm drive roller set--
Knurled drive roller set--
3m arc welding cable £28.95
5m arc welding cable--
Arc gauging torch--
WP9V 12.5ft TIG torch£75.00
WP17V 12.5ft TIG torch--
Bison Mark II Generator£1650.00
Bison Whisper Generator--
Bison Whisper 10kVA 240V Generator£1995.00
Bison Whisper 10kVA 240/415V Generator--
Water cooled-option (Warrior water cooler, DF605 4m torch & Bottle Carrying Trolley)--
Built-in Goblin Fume Extraction--
Shipping & Services

Shipping

Customer collectionFrom our premises by Appointment Only
Mainland UK£35 (exclusions apply, enquire for further details)
Northern IrelandN/A
Republic of IrelandN/A
Shipped fully assembled, mounted on its cradle and on a pallet:

Services & Support

Review / Q&As

Share your thoughts!

5 out of 5 stars

1 review

Let us know what you think...

What others are saying

  1. warriorwelders

    The 170 performed brilliantly

    warriorwelders

    After about 10 years of excellent service out of my Warrior 250 MIG and still working hard in our boat yard, I bought the fantastic little Warrior 170 MIG. First job with it was welding 6mm plates to the bottom of a boat which the 170 did with ease. 2nd job was repairing steel railings on the roof of a 5 story building with only a 13 amp domestic supply on the roof and the 170 performed brilliantly.
