PLEASE NOTE: 2-3 day build time for this machine
Available on backorder

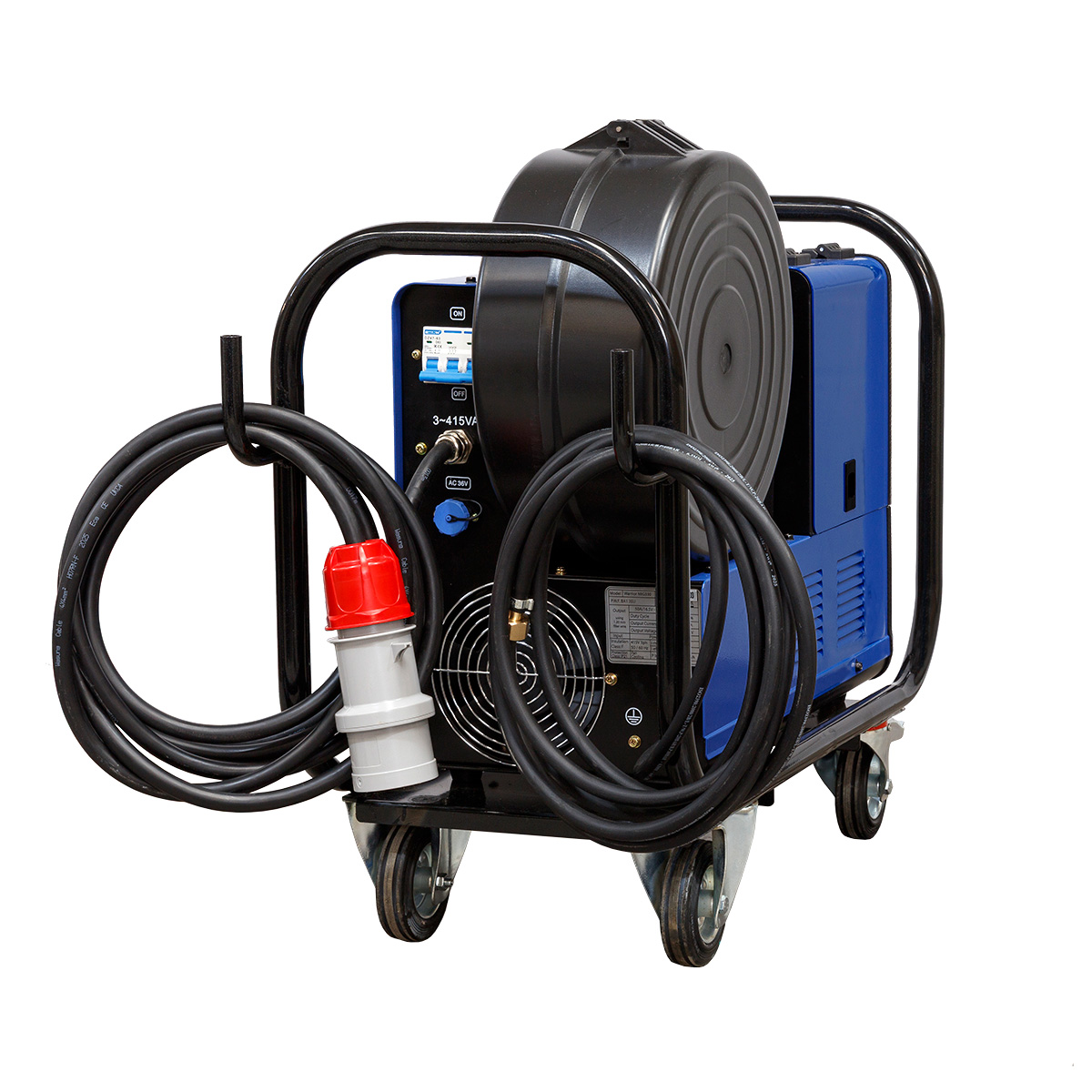

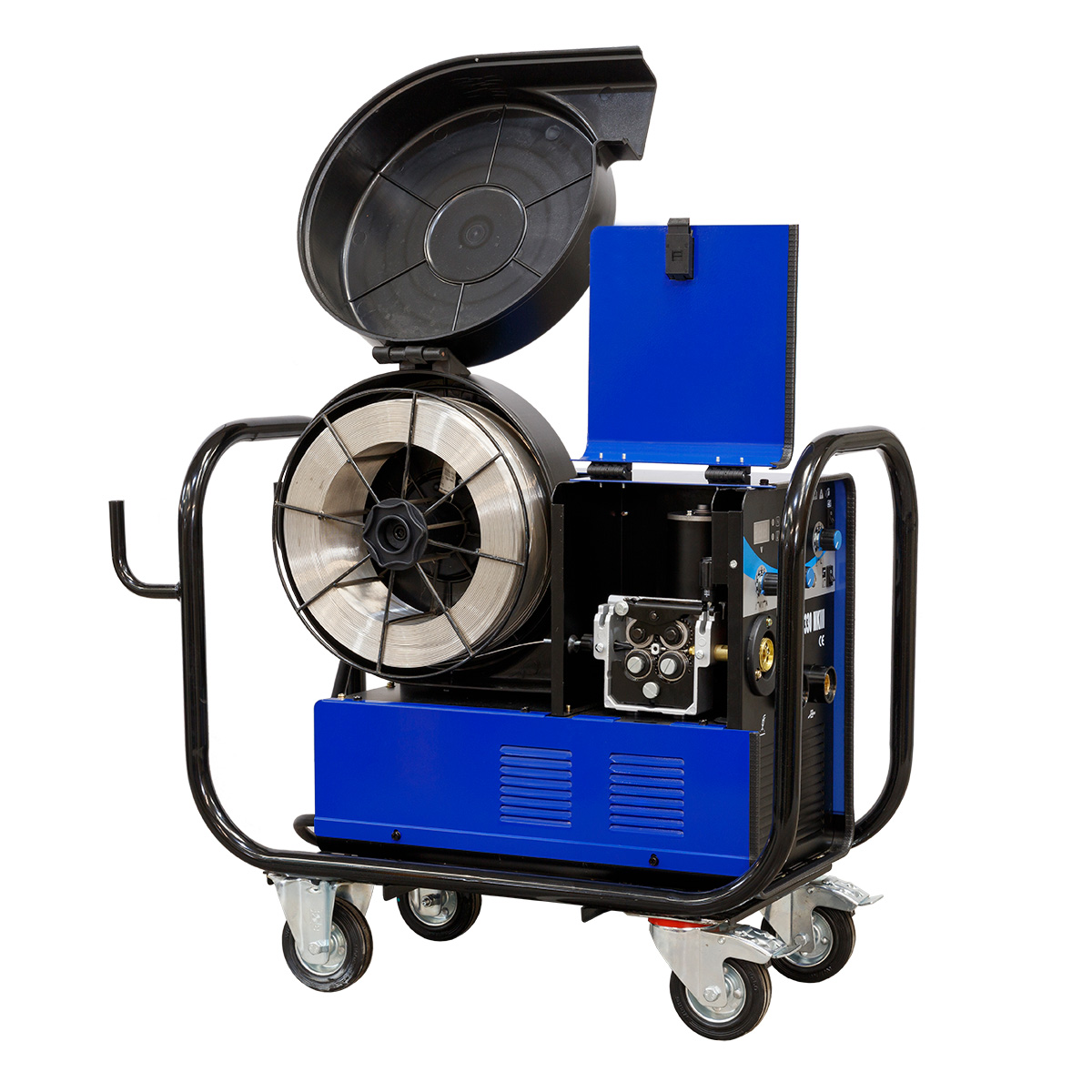

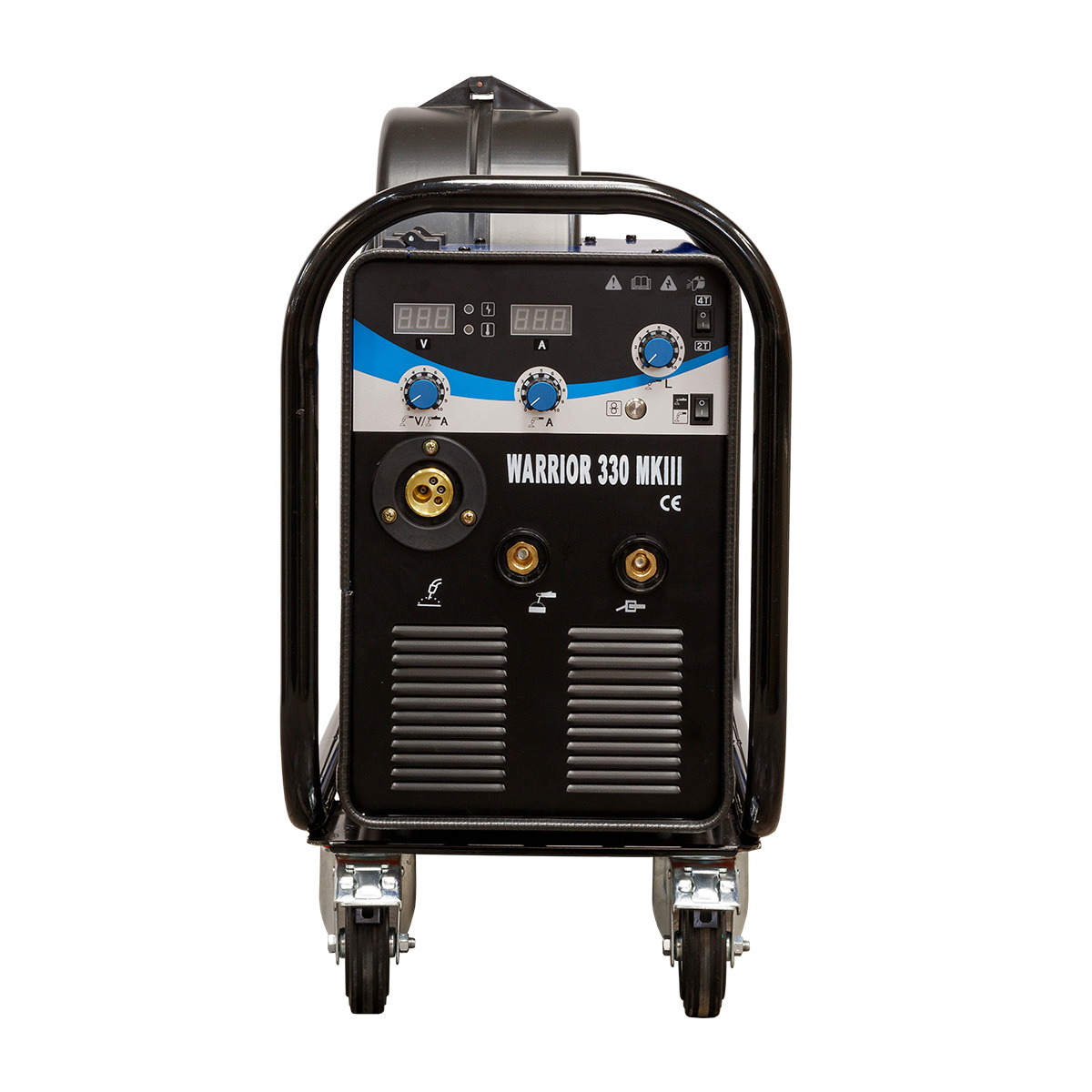

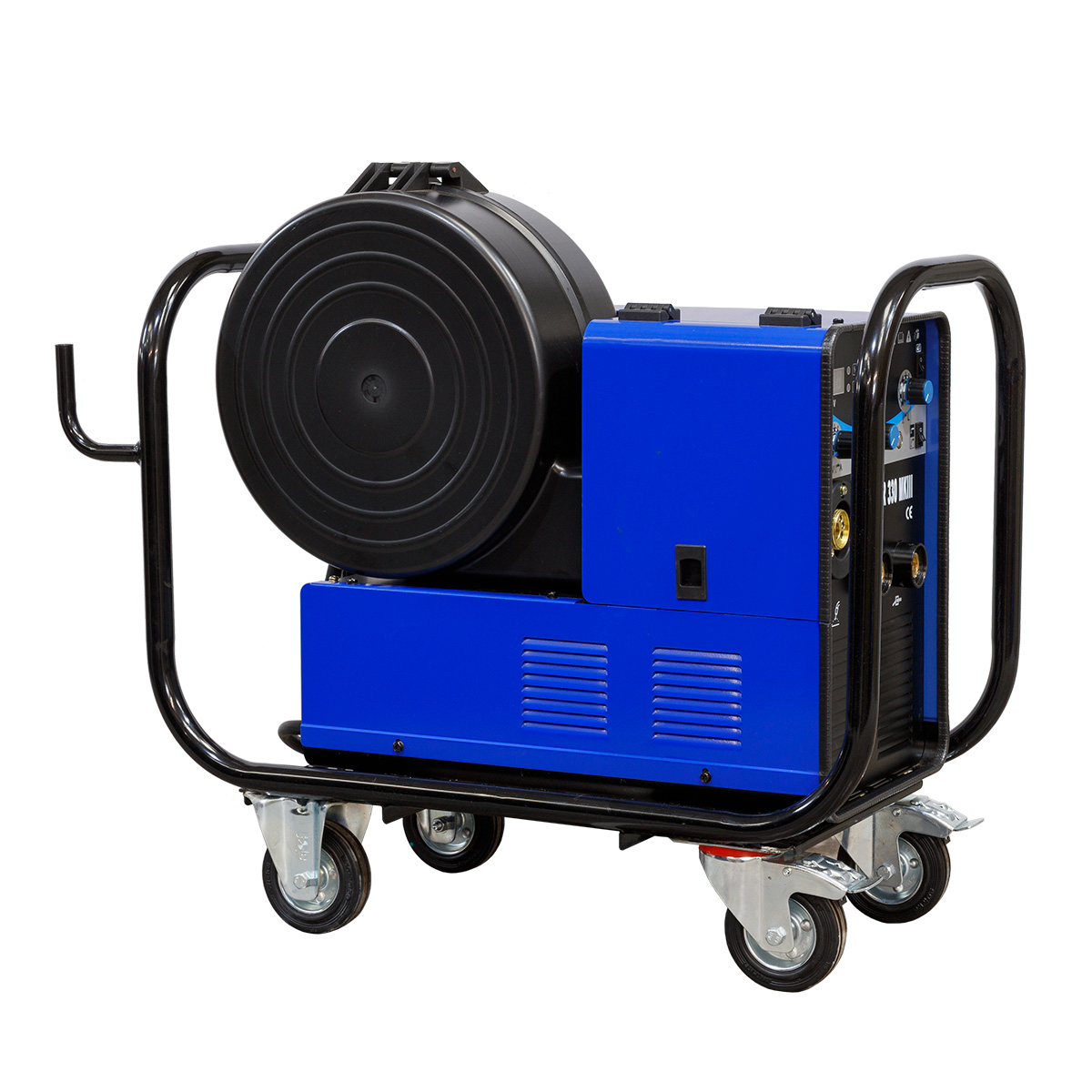

The Warrior 330 MKIII Three-Phase MIG/MMA Welder is a powerful 300A inverter MIG and MMA welder with a 415V three-phase input, ideal for general fabrication and digger bucket repair. If you’re looking for a 300A MIG welder but with extra oomph and MMA function, the Warrior 330 MKIII MIG/MMA Welder is the machine for you.
The Warrior 330 MKIII Three-Phase MIG/MMA Welder weighs only 32kg, including a 15kg wire spool with cover. This welding machine’s highly portable and efficient design allows it to run off a generator, including our Bison Whisper Three-Phase 10kVA Diesel Generator, a Mosa 300 and a Genset 300.
Soft start prevents wire tangling and uses less than 30% electricity than a conventional transformer-based machine, whilst its powerful four roller wire-feed is superb for aluminium welding. Our optional Warrior Aluminium MIG Welding Kit enables you to modify your Warrior 330 MKIII MIG/MMA Welder to start welding aluminium immediately.
This 300A MIG welder provides stepless adjustable welding voltage and wire speed with excellent welding characteristics, including variable burnback and spatter control, and has the capacity to be run as a water-cooled machine; increasing the machine’s efficiency, operating time and amperage.
Unlike other companies, we can provide bespoke built-in Goblin Fume Extraction for the Warrior 330 MK3 Three-Phase MIG/MMA Welder; an independent twin fan ventilation design with comprehensive protection (anti-dust, anti-moisture, anti-corrosion).
| Input voltage | 415V three-phase |
| Duty cycle | 330A @ 100% |
| Wire range | 0.6-1.2mm |
| Weight | 17kg |
| Frame dimensions (L x W x H) | Frame dimensions (L x W x H) 790mm(L) x 340mm(W) x 670mm(H) |
| Digital amp/voltmeter | Fully calibrated |
| Four roller drive | |
| Soft start | |
| Stepless power control | |
| Variable spatter control (inductance) | |
| Variable burnback control | |
| MMA function | |
| Generator friendly |
| PRO15 3m torch | PRO15 3m torch |
| PRO25 4m torch | PRO25 4m torch |
| PRO36 4m torch | PRO36 4m torch |
| DF605W 4m water-cooled torch | DF605W 4m water-cooled torch |
| 3m earth cable (with crocodile type clamp) | 3m earth cable (with crocodile type clamp) |
| 5m earth cable (with crocodile type clamp) | 5m earth cable (with crocodile type clamp) |
| 5m earth cable (with screw clamp) | 5m earth cable (with screw clamp) |
| 3m rubber mains cable | 3m rubber mains cable |
| 5m SY armoured mains cable | 5m SY armoured mains cable |
| 10m SY armoured mains cable | 10m SY armoured mains cable |
| 5m interconnecting cables | Generator friendly |
| 16A 3-pin mains plug | 16A 3-pin mains plug |
| 16A 4-pin mains plug | 16A 4-pin mains plug |
| 32A 3-pin mains plug | 32A 3-pin mains plug |
| 32A 5-pin mains plug | Generator friendly |
| 3m argon hose | Generator friendly |
| 5m argon hose | Generator friendly |
| 10m argon hose | Generator friendly |
| Warrior argon regulator | Generator friendly |
| 0.6/0.8mm drive roller set | Generator friendly |
| 1.0/1.2mm drive roller set | Generator friendly |
| 5-year warranty (excl. consumable items) | Generator friendly |
| Mounted on industrial easy-lift frame with locking castors | Generator friendly |
| Mounted on bottle carrying trolley with water cooler | Generator friendly |
| Customer collection | From our premises by appointment only |
| England & Wales: | From £78 (exclusions and price variations apply, enquire for further details) |
| Scotland and Highlands | From £90 (exclusions and price variations apply, enquire for further details) |
| Northern Ireland / Republic of Ireland | £222 (enquire for ROI shipping details) |
| Shipped fully assembled, mounted on its cradle and on a pallet: | -- |
